Air Filters

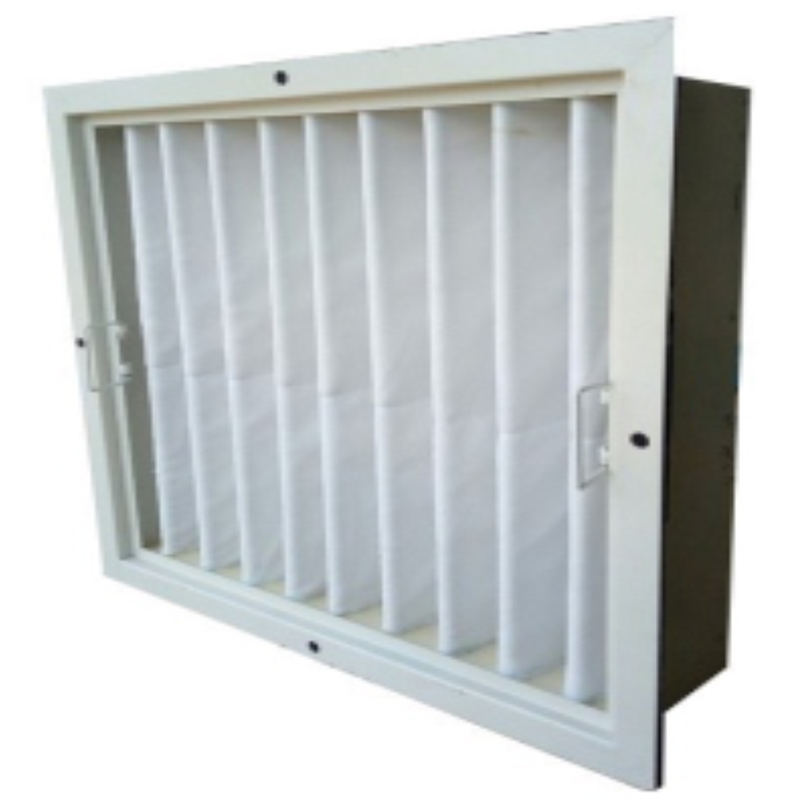

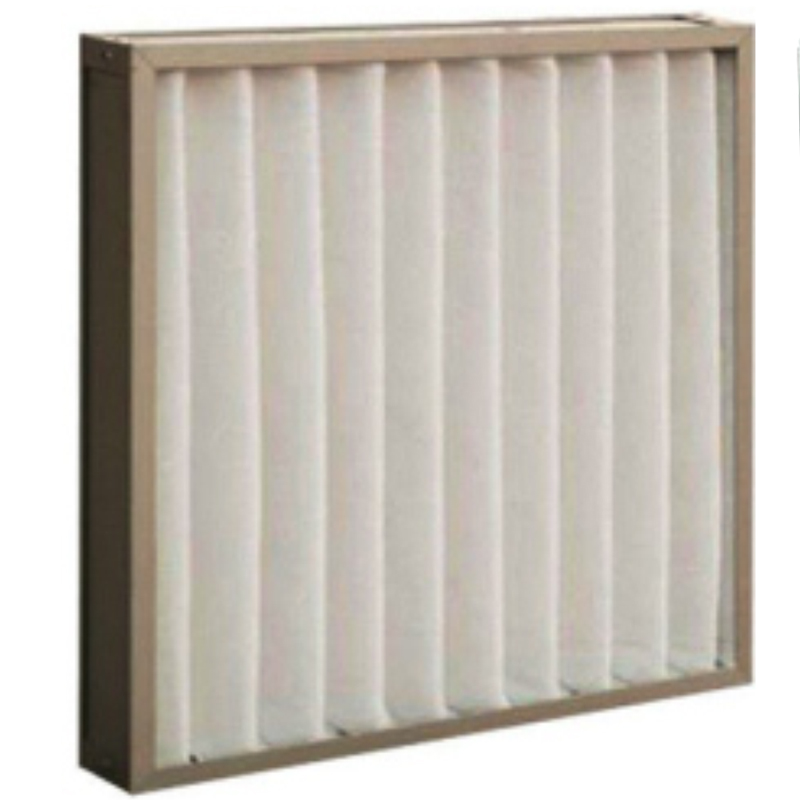

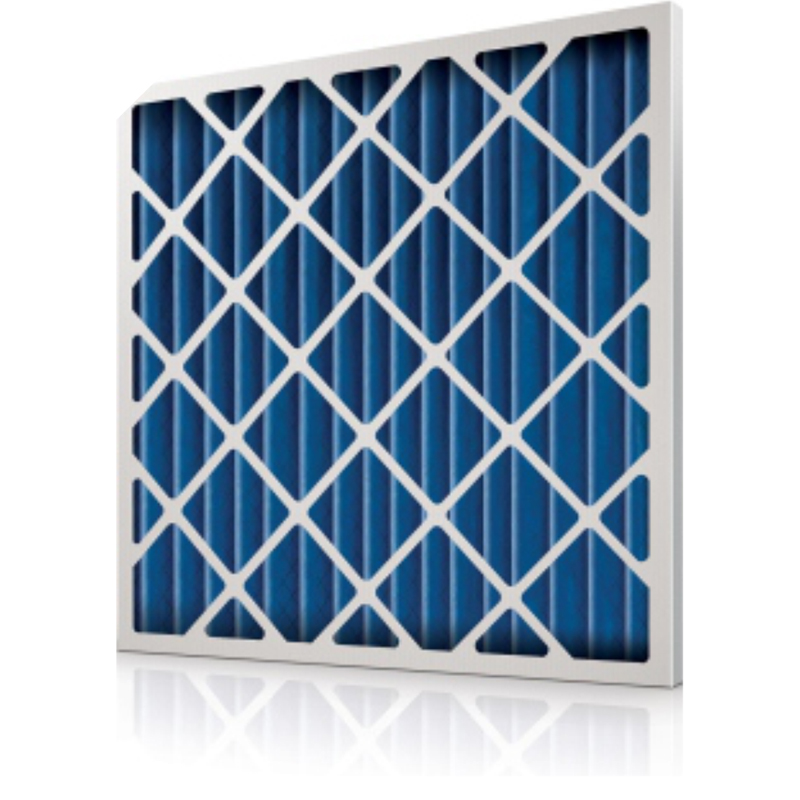

Panel Filter

• Robust Construction
• High dust holding capacity
• Excellent arrestance
• Suitable for Commercial & Industrial Application
• Low initial pressure drop
• Media: Pleated Synthetic Fiber
• ΕΝ 779:2002 efficiency: G2 /G4
• Eurovent efficiency: EU2/EU4

Fine Filter

• Robust Construction
• High dust holding capacity
• Excellent arrestance
• Suitable for Commercial & Industrial Application
• Low initial pressure drop
• Media: Pleated Synthetic Fiber
• EN 779:2002 efficiency: F5 /F9
• Eurovent efficiency: EU5 /EU9

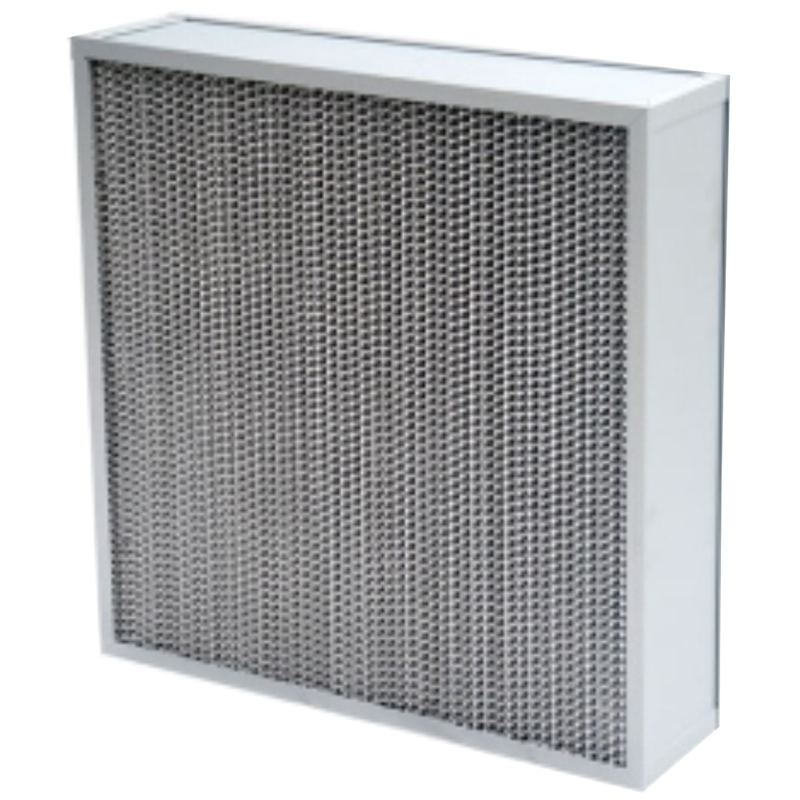

Hepa Filter(Foil Seperator)

• Robust construction
• Low Initial Pressure drop
• Separator: Corrugated Aluminum
• High dust holding capacity
• Wide range of Standard size
• Individually leak tested
• Media: Fiber Glass
• EN 1822 efficiency:
• H12, H13,H14

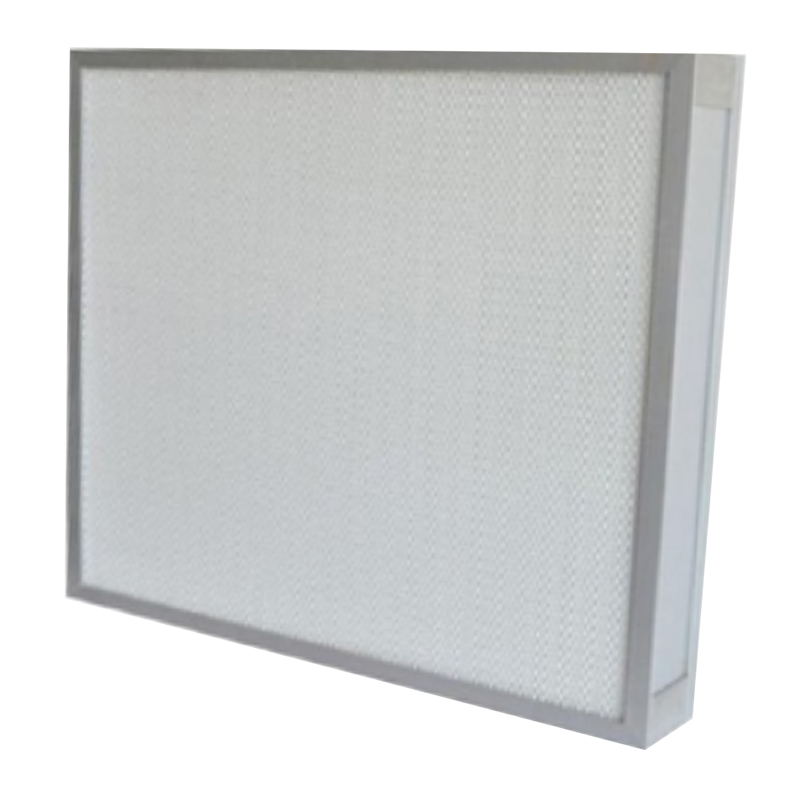

Minipleated Hepa Filter

• Low initial pressure drop
• Resilient
• Separator: Hot-melt beads.
• High dust holding capacity
• Wide range of Standard size
• Individually leak tested
• Media: Fiber Glass
• EN 1822 efficiency:
• H12, H13,H14

Disposable Panel Filter

• Entirely disposable
• Low initial pressure drop
• Inexpensive
• Media: Synthetic Fiber
• ΕΝ 779:2002 efficiency: G2 /G4
• Eurovent efficiency: EU2 /EU4

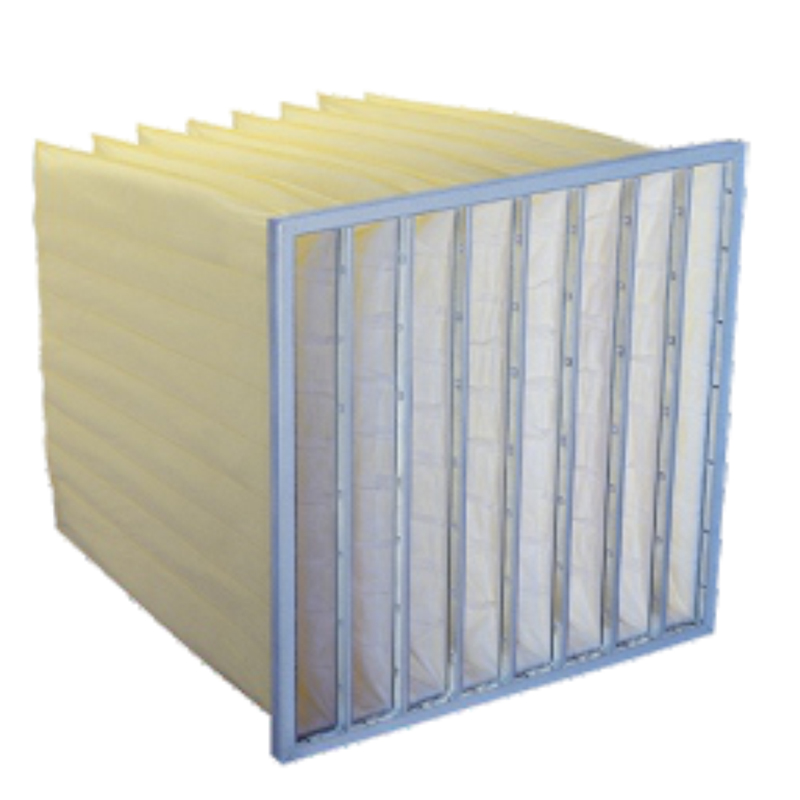

Bag Filter (Synthetic Media)

• High air flow rate
• Low initial pressure drop
• Sturdy construction
• Extended media surface
• Very High dust holding capacity
• Media: Progressive structure synthetic fiber. / Glass Fibre
• ΕΝ 779:2002 efficiency: F5/F9
• Eurovent efficiency: EU5 /EU9

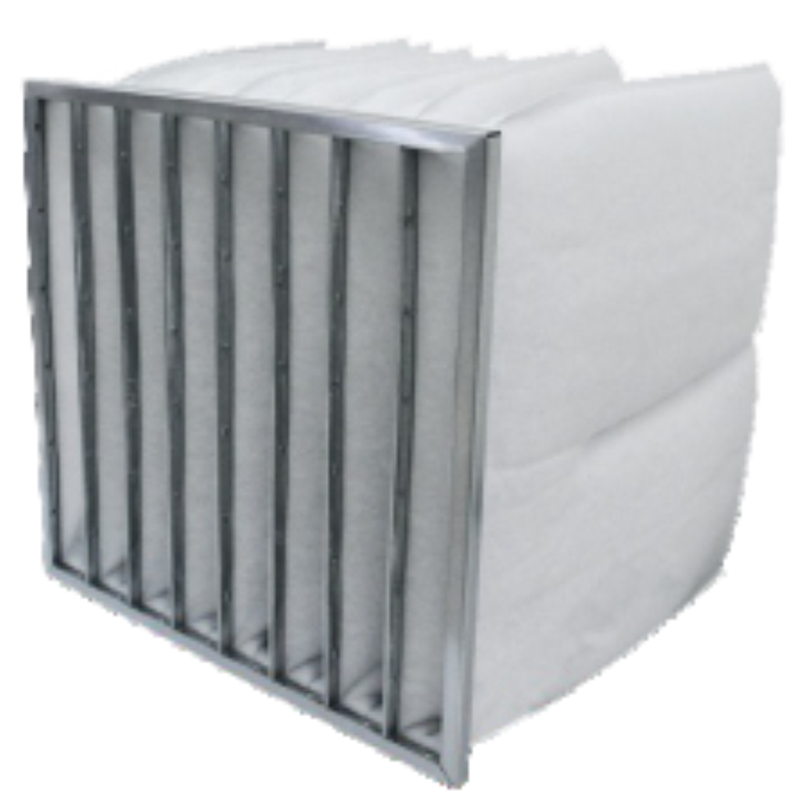

Bag Filter (Polyester Media)

• High air flow rate
• Low initial pressure drop
• Sturdy construction
• Very High dust holding capacity
• EN 779:2002 efficiency: F5/F9

Activated carbon Filter

• Application: Low concentration gas-phase filtration
• Type: Pleated panel filter
• Media: Self Supporting Activated carbon textile media

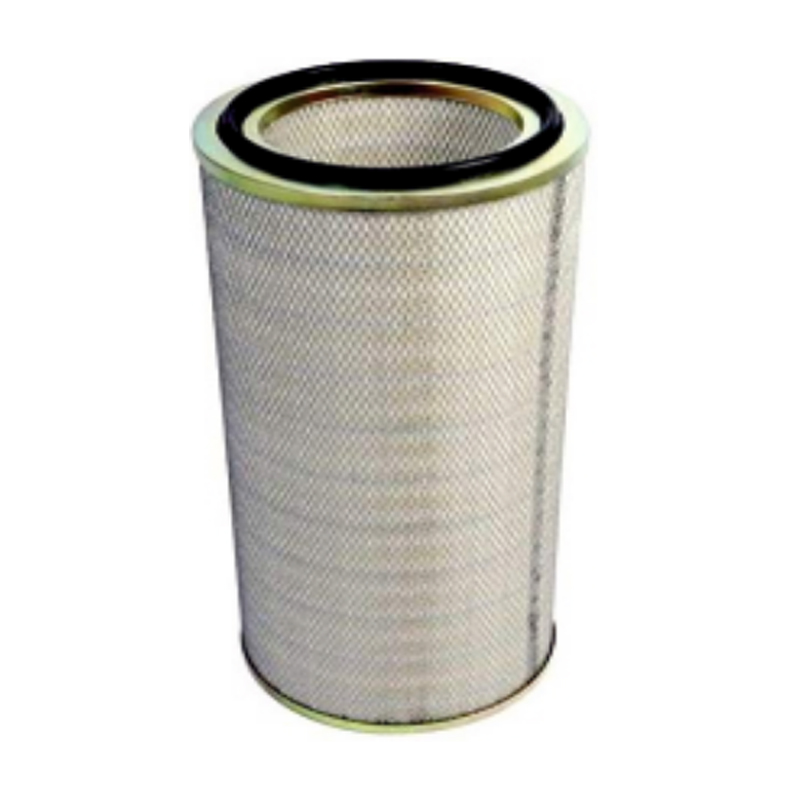

Cartridge Filter

• Great Filter Surface on Small Space
• Excellent Quality
• Best Ratio Prince to Filter Area
• High Safety in Operation

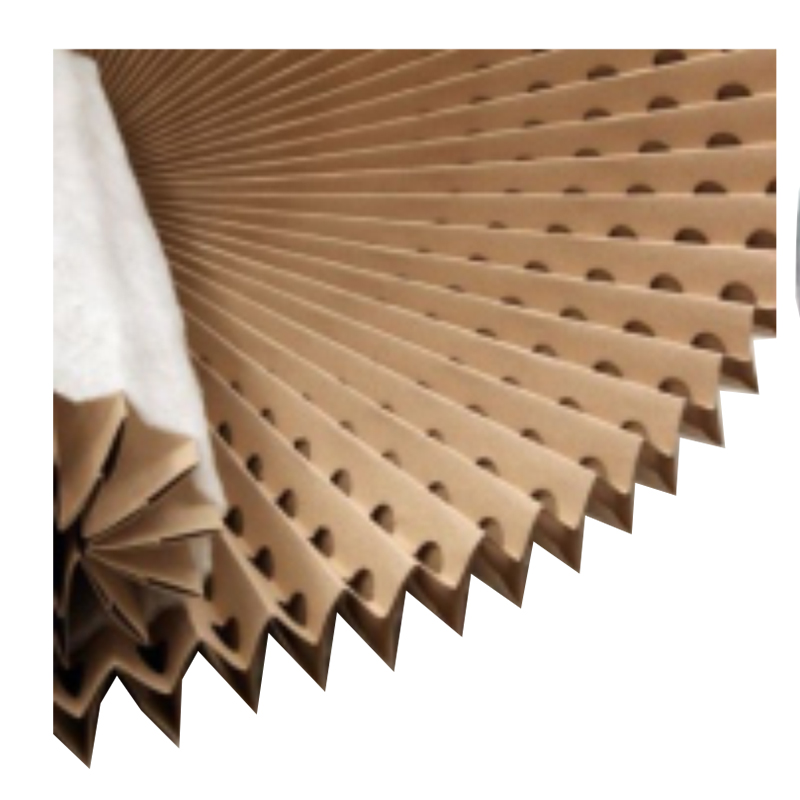

Spray Pleat Pack Filter

• Lower Shipping & Storage Cost
• Retention Capacity: 15 Kg/M2
• Standard Dimension Length: 10 Mfr.
• Width: 0.75m., 0.90m, 1.0 m.

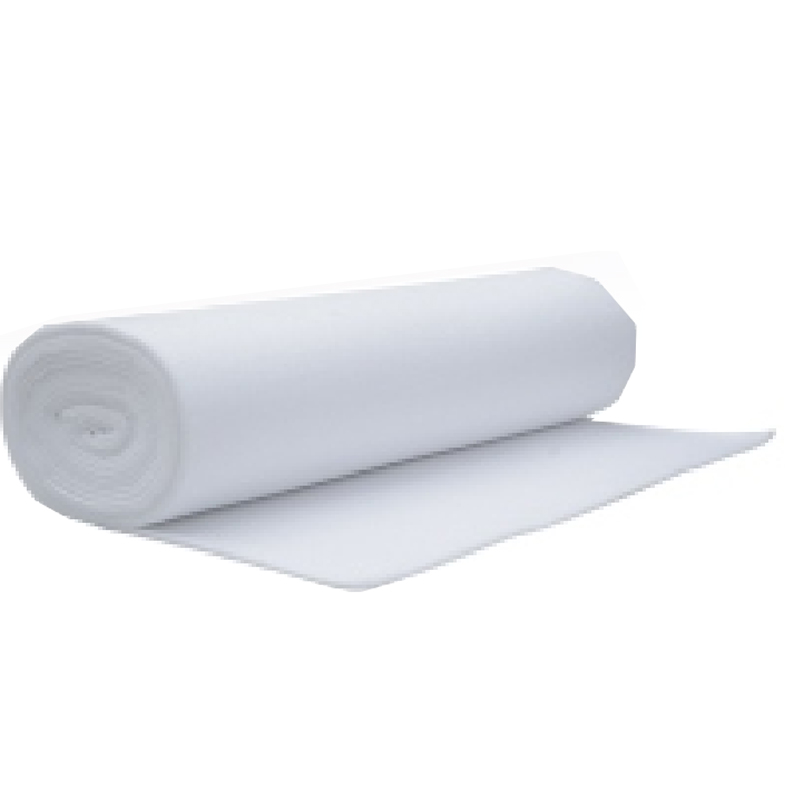

Glass Fiber Media Roll

• High Dust Holding Capacity
• Very Low Pressure Drop
• Available in Rolls / Cut to Size Or Framed Filter
• Standard Dimension
• 50mm/70mm/100mm thick

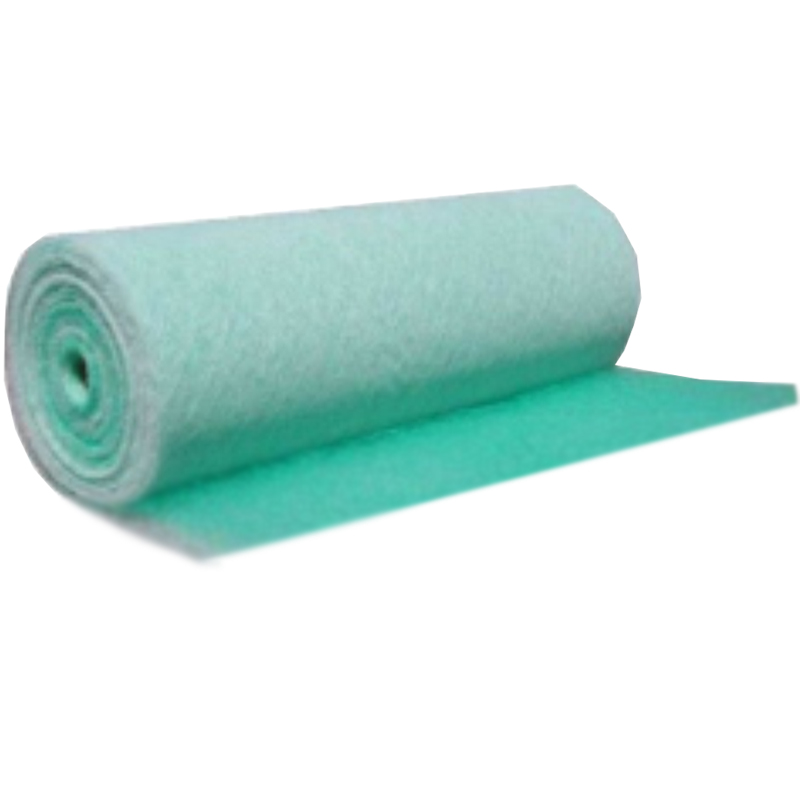

Air Intek Filter Media

• High Dust Holding Capacity
• Very Low Pressure Drop
• Available Grade G2/G3 /G4
• Standard Dimension
• Roll Length: Cut to Size

Hooded Hepa Filter

• Anodized extruded aluminum construction
• 2' x 2' and 2' x 4' sizes
• Low profile design5" deep. Fits intot-bar ceiling grid
• Adjustable diffuser/damper
• Five efficiencies -99.7%, 99.99%, 99.999% on .3 microns; 99.999%, 99.9995% on.12 microns

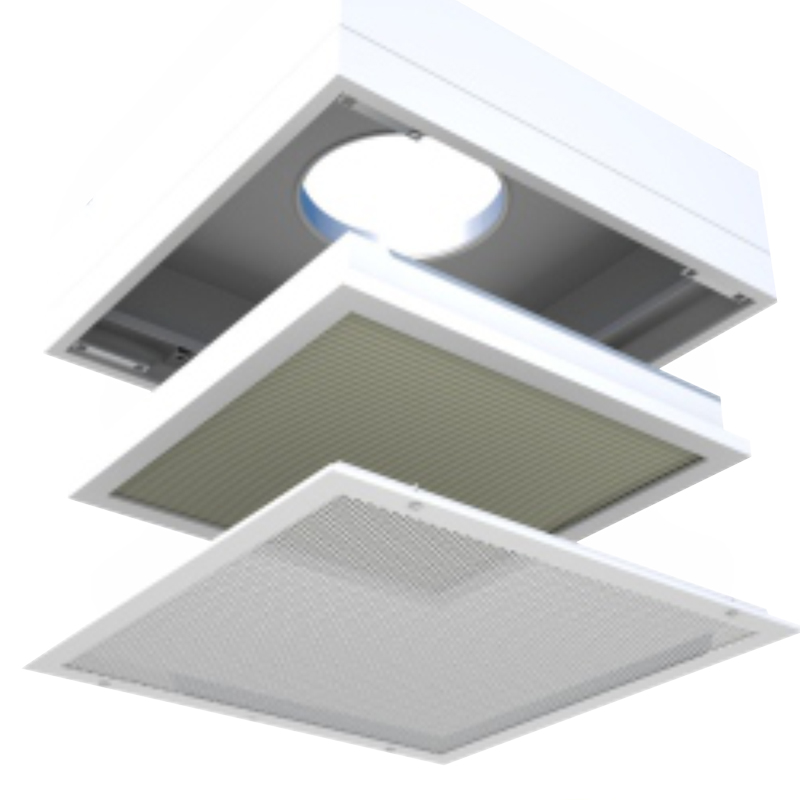

Micro Plus Room Side Replaceable Ceiling Modules

• Permanent housing with room side replaceable HEPA filter
• Ducted inlet design
• Low Profile 7" deep

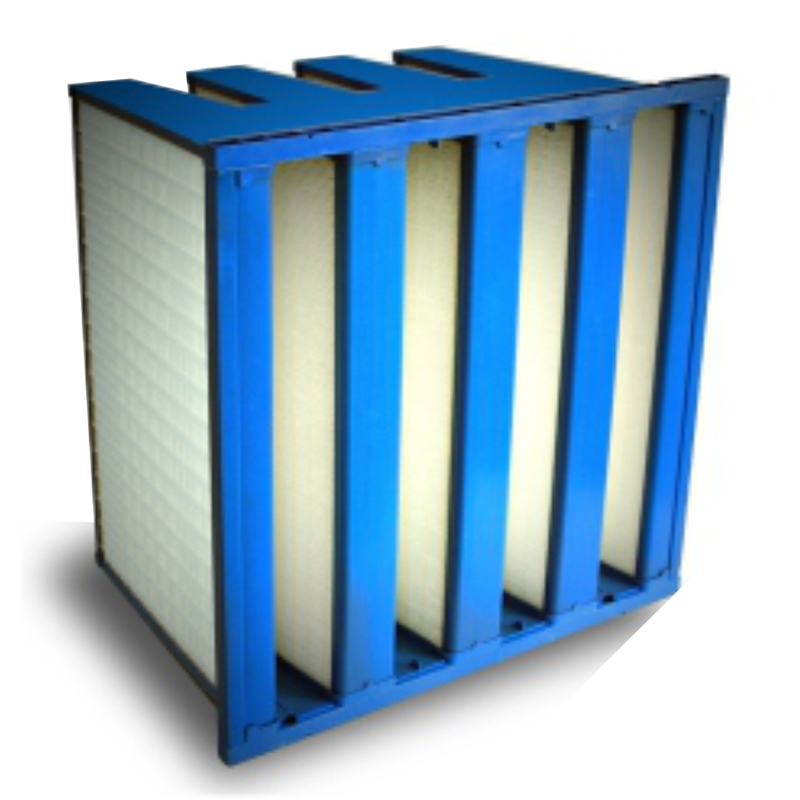

Filter Elements

During production, the filter medium made of micro-fibreglass fleece is pleated to form a stable package of folds. The number and the height of the folds are optimally designed to match operating conditions. The individual filter plates are arranged in a V-shape (in 4 compartments) inside a synthetic frame made of ABS, so as to assure astable form of the filter plates, and are glued to assure airtightness.

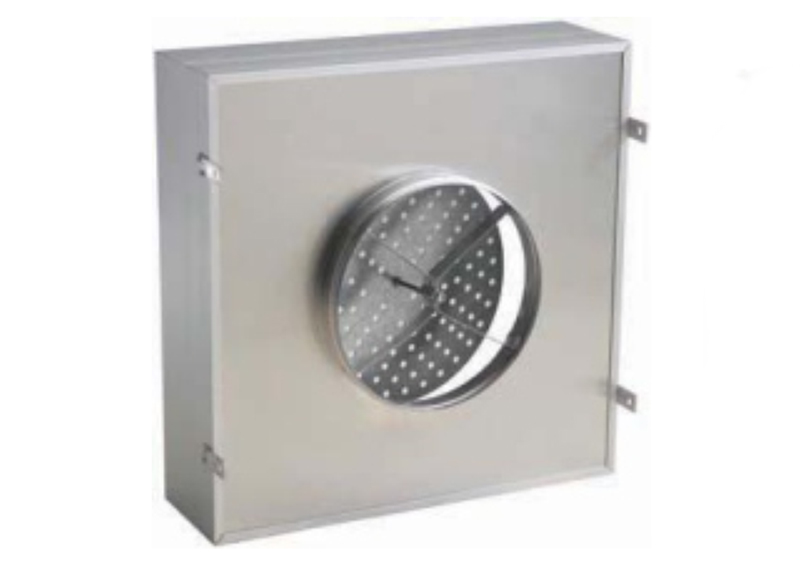

Filter Housing

• Application: Housing For Filters In Clean Rooms
• Moc: Aluminium, Galvanized Steel Powder Coated Stainless Steel
• Volume Control Damper: Gear Operated Square Type
• Accessories: In Stainless Steel / Powder Coated
• Type: Top/Bottom Loaded
• Filters Connection: Square Type Or Circular Type
• Perforated Grill: Aluminium, G.I. Powder Coated. Stainless Perforated Sheet

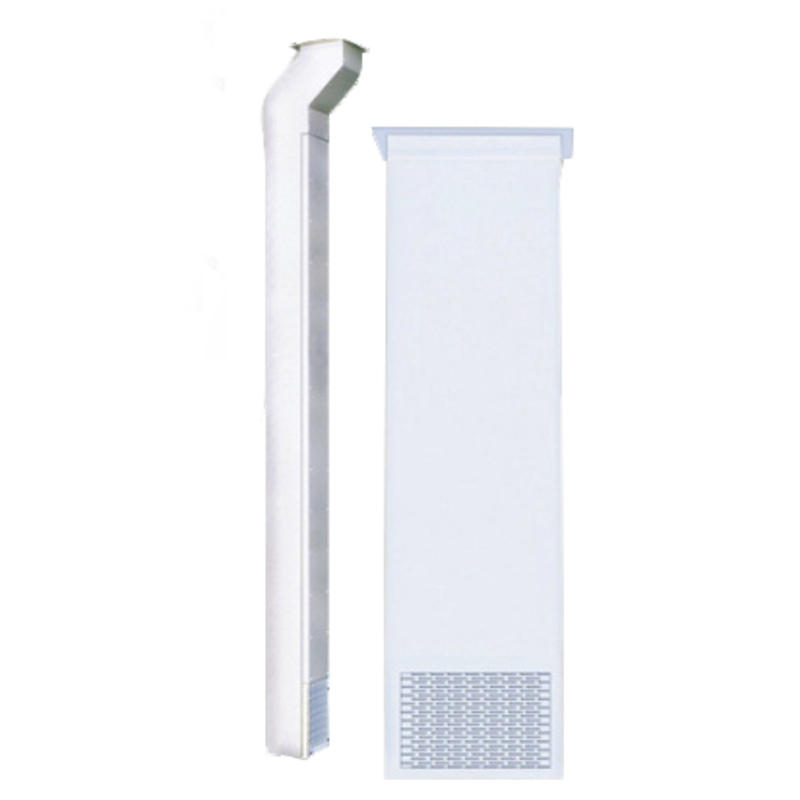

Return Air Riser

• Features:Optimum Strength strong Structure high Durability
• Specifications: Material Of Construction SS Or Anodized Aluminium And CRCS Power Coated
• Additional Features: Pre Filters (20/10 micron) Along With Front Removable Accessible Panel Front Operated Dampers - Operated From Clean Room
